Exact edit: Free Add-on for precision modeling

A critical aspect of architectural modeling is the control over dimensions or precision modeling. You must have a good amount of tools that allow you to set exact sizes to get an accurate 3d model.

If you work with a model that doesn't have, at least correct proportions, your renders will become useless.

In Blender, we can control dimensions during modeling by typing the values in the keyboard. At any transformation, you can type the dimension size to get accurate sizes.

What if you have to edit your models after the modeling stage?

Wouldnt it be great if you could just select a model and set dimensions directly? For instance, choosing a door and change the size to 1.2 meters.

Using a free Add-on called Exact Edit from developer nBurn it is possible. The tool will allow you to select existing reference points, like vertices, and set the distance between them.

To download the tool you can visit the Add-on page in GitHub, and get more info about it in the BlenderArtists thread about Exact Edit.

How do the Add-on works?

Precision modeling for architecture with Exact Edit

As a way to demonstrate how the Add-on works, I will use a common type of edition that you would have to perform. I have a wall model that has a hole for a door.

Precision modeling for architecture

During modeling, I forgot to set the size, and the door has now 1.95 meters in width. The correct size is 1.2.

Let's use the Exact Edit to set the width to 1.2.

First, where is the Add-on? After you install the Add-on, it will stay on the tools shelf in the 3D View.

Precision modeling for architecture

To activate the Add-on, you must press the “Set Measure” button and select some reference points. The Add-on will work on both Object and Edit modes.

Here is a step-by-step guide on how to edit architectural models using the Add-on.

Step 1 – Select the vertices

The first step is to enter Edit mode and select all vertices that are part of the door. Get the entire edge loop.

Precision modeling for architecture

Step 2 – Activate the Add-on and select two reference points

Press the “Set Measure” button to activate the Add-on and pick two reference points. Don't worry about snapping, because the Add-on will capture the closest vertex based on where you clicked. Use the left mouse button to choose two points.

Precision modeling for architecture

Step 3 – Set the transformation type

Here is something critical for that type of edit. You must change the transformation type from a move to scale, and constraint the edit to the Y-axis.

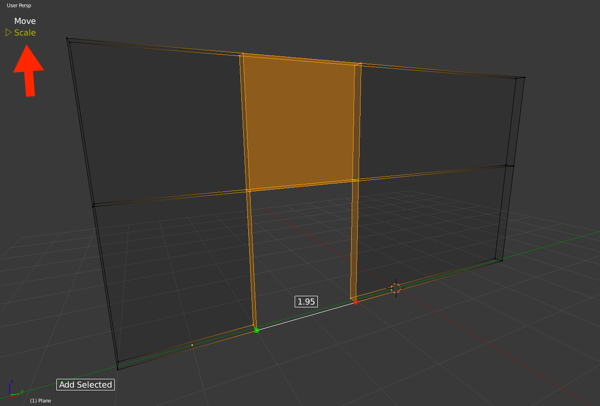

Use the down arrow key on your keyboard to change the transform to Scale, and press the Y key. You will see the transformation indicator change to scale in the top left corner.

Precision modeling for architecture

Why the Y axis? Because that is the direction, we want to use in the scale.

Step 4 – Change the dimension

Now to the last step! Do you see the value showing the distance between the two vertices you just selected?

Left click on that value and a box will appear, asking you for the new value. Change the value to 1.2 and hit ok.

And you now have a door with precisely 1.2 meters in width.

You can do a lot more with the Add-on, but that is already a great way to have precise control over dimensions for your architectural models in Blender.

If you were looking for precision modeling tools, you should definitively take a look at the Exact Edit Add-on.

Did I mention that it is free?

Architectural modeling with Blender

Do you want to get more content related to architectural modeling in Blender? Take a look at our courses related to modeling:

Are you still starting to work with Blender? We also have a Blender basics for architecture course, which is free.
